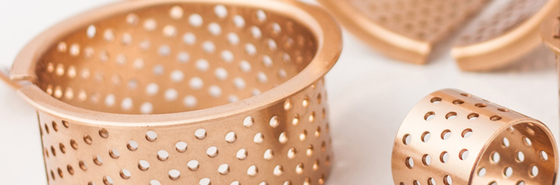

Diamond oil hole Bronze wrapped bearing with holes

GEROLLTE GLEITLAGER (CUSN8) -092

Selecting Bronze Bushing Materials -Corrosion Protection & Resistance

DZT 30*34*28 Bronze Bushings & Bearing | CuSn8 Stock Size

(FB092)
CuSn8P(Qsn8-0.3)

Structure Characteristics and Applications

High load corrosion resistance high temperature resistant

Low coefficient of friction wear corrosion resistant

VIIPLUS  wrapped bronze bushing is made of tin-bronze CuSn8P with its surface punched with diamond oil sockets which are preserved for oil saving. It has good anti-fatigue, anti-erosion anti-abrasion and load capacity. The products are widely applied in conditions of heavy load but low running velocity, such as on agricultural, buiding and engineering machines.

Bronze Gleitlager wrapped bushing,  092 bushing | VSB-22 Factory customized Copper wrapped bushings

CuSn8 Bronze Bearing, Cylindrical Bronze Bushing, ,Self-lubricating Bronze Bushing

WF-WB800 bronze bushing with oil pockets HB 90 - HB 150 PRMF AB 090 FB090F FBB090 copper plain bush , brass bearing bush

Composition is same as 090 bushing, but with holes to collect the lubricant instead of indentations.T ypical application: widely applied in hoisting machines and other construction machines, automobiles, tractor, trucks, machines tools and some mineral engines.

Bronze wrapped bushing, with diamond oil socket to preserve oil grease. It has good anti-fatigue, anti-erosion and anti-abrasion and load capacity. It can be proudced by different tin-bronze material and the surface can be produced with other type of oil socket and oil groove in different working condition, The material structure, application fields, and technical parameter are as follows.

Bronze Wrapped Bearing with Oil Pockets(092 CYLINDRICAL BUSHES)

VSB-22 CuSn8P Wrapped Bearings
Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip
· Bearing material made of solid bronze strip with indents for lubrication
· Good wear resistance, suitable for rough conditions
· Optimum performance under relatively high loads and low speeds

· 1.Easy for fitting and lubricating
· 2.High load capacity
· 3.Inner Diameter machineable parts are available against order
· 4.High level thermal conductivity
· 5.Minimum overall dimensions
· 6.Chemical resistance.
· Initial pre-lubrication at assembly required...

The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents

CuSn8 with composition Sn 8 % P < 0.05 % Cu Rest



Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs


This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machines tools and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, taist washers, spherical bearing andsoon.
